Shelf for Network Cabinet | Server Rack | Data Center Accessories | Zion Communiation China Supplier

Name: Shelf for Network Cabinet Server Rack Data Center Accessories Zion Communiation China Supplier
Brand: Zion communication OR OEM
Price: 1 USD

Cheap Shelf for Network Cabinet | Server Rack | Data Center Accessories | Zion Communiation China Supplier wholesale

Brand Name : Zion communication OR OEM

Model Number : Data Center Equipment

Certification : ISO, CE, RoHS, UL

Place of Origin : CHINA

MOQ : 1,000 PCS

Payment Terms : T/T, L/C

Supply Ability : 30,000 PCS / Month

Delivery Time : Normally 10 workingdays

Packaging Details : 1 PC/Plastic Bag, PCS/Carton

Model : Cabinet Fitting

Bnad : HELLOSIGNAL

Cord : Shelf

Cabinet Size : 19''

Contact Now

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

SHELF

Cooling Fan
· For network cabinet, adjust inner temperature Performance reference.

Parameter
Size:
120 × 120 × 38
Atmosphere Runoff:
50CFM
Noise:		Periode:
24.9dB		-10°C~+50°C

Main Part
Model No.	Description		Input (V)	Axletree Type
ZCS701022000	AC fans		220	Oiliness Axletree


Cantilever Shelf Without Holes
· Used for 19 inch network cabinet and rack.
Parameter
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.	Description		Capacity
ZCS70140207	2U-10" DP		22Kg.[48Lb]
ZCS70140208	2U-16" DP		22Kg.[48Lb]

Double Sided Shelf (2U)
· Used for 19”open rack, 2U height.
Parameter
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.	Description		Capacity
ZCS70140202	2U-19" DP		50Kg.[110Lb]

Fixed Shelf
· Only for cabinet, install from side.
Parameter
Static load capacity:
90Kg [198Lb]
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.	Shelf size MM			Use
	Width		Depth
ZCS70014500	485		300	450MM wall box
ZCS70016601	485		450	600MM wall box
ZCS70016000	485		350	600MM cabinet
ZCS70018000	485		550	800MM cabinet
ZCS70019000	485		620	900MM wall box
ZCS70011000	485		720	1000MM wall box


Cantilever Shelf With Holes
· Used for 19 inch network cabinet and rack.

Parameter
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.	Description		Capacity
ZCS70140102	1U-6" DP		5Kg.[11Lb]
ZCS70140101	1U-10" DP		10Kg.[22Lb]
ZCS70140205	2U-12" DP		22Kg.[48Lb]
ZCS70140204	2U-14" DP		22Kg.[48Lb]
ZCS70140201	2U-16" DP		22Kg.[48Lb]
ZCS70140206	2U-18" DP		22Kg.[48Lb]
ZCS70140301	3U-16" DP		36.3Kg.[80Lb]
ZCS70140302	3U-18" DP		36.3Kg.[80Lb]

Keyboard
· Used for 19 inch network cabinet. · Keyboard width is no more than 400MM. · Sliding shelf could elongate to 260MM.

Parameter
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.	Description		Capacity
ZCS70033501	1 type		600~800MM cabinet
ZCS70033501	2 type		900~1100MM cabinet

Keyboard With Mouse Panel (2U)
· Used for 19 inch network cabinet. · Keyboard allowed maximum size 500X200MM. · Keyboard and mouse are individually placed for convenient operation.

Parameter
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.		Use
ZCS702102100		800~1000MM cabinet

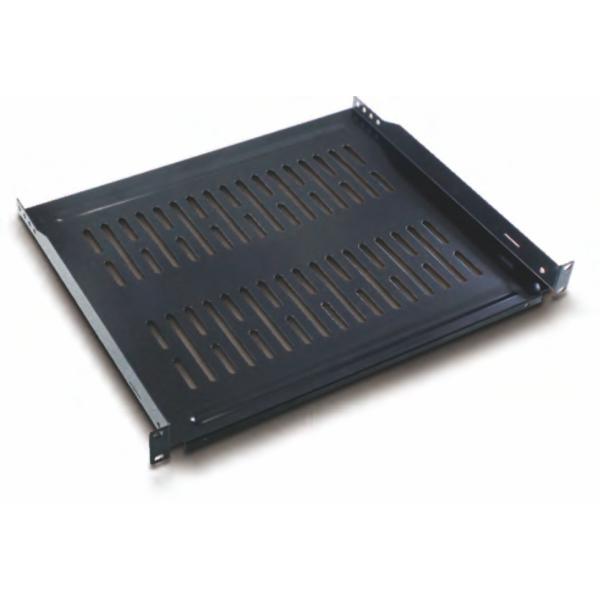

Sliding Shelf (1U)
· Used for 19 inch network cabinet.
Parameter
Static load capacity:
30Kg [66Lb]
Material:		Color:
SPCC cold rolled steel		70 ■■■■0■■ : RAL7035 70 ■■■■1■■ : RAL9004


Main Part
Model No.	Description		Shelf size MM		Use
			Width	Depth
ZCS70023500	350 type		440	350	600~800MM cabinet
ZCS70025500	550 type		440	550	900~1100MM cabinet

Shelf for Network Cabinet | Server Rack | Data Center Accessories | Zion Communiation China Supplier Images
